GNSS antennas play a central role in satellite-based positioning systems by serving as the primary interface between a GNSS receiver and the constellation of navigation satellites orbiting Earth. These antennas capture weak radio signals transmitted from GNSS satellites—such as GPS, Galileo, GLONASS, and BeiDou—and deliver them to the receiver for processing. Without a high-quality GNSS antenna, even the most advanced navigation system cannot function effectively. The performance, accuracy, and reliability of positioning data heavily depend on the quality and characteristics of the antenna, making it a vital component in a wide range of applications, from aviation and agriculture to surveying and defense.
A GNSS antenna must detect signals that arrive from multiple satellites located in different parts of the sky. These signals are transmitted in the L-band frequency range and reach Earth with very low power, typically around -130 dBm. Due to the weak nature of these signals, GNSS antennas require high sensitivity, low noise, and precise filtering to ensure clean signal reception. Any distortion or loss at this stage directly affects the accuracy of the position and timing solution.
There are several key features that define a GNSS antenna’s performance. First, it must support the desired satellite constellations and frequency bands. Dual-frequency antennas receive signals from L1 and L2, or L1 and L5 bands based on system design. Multi-constellation support lets the antenna track more satellites. This improves signal availability and reduces positioning errors in urban canyons and forests.
Another critical characteristic is phase center stability. The phase center is the point within the antenna where the signals appear to originate. In high-precision applications like geodetic surveying or reference stations, even small variations in the phase center can introduce significant position errors. A high-quality GNSS antenna maintains a stable phase center across all frequencies and angles of arrival, ensuring consistent and reliable measurements over time.
Gain and radiation pattern
Antenna gain and radiation pattern also play a major role in performance. The antenna must provide sufficient gain across the entire sky, especially at low elevation angles where signals travel longer paths through the atmosphere and suffer more attenuation. An ideal GNSS antenna has an omnidirectional, hemispherical pattern that ensures uniform signal reception from satellites across the sky dome. It also includes built-in filtering and low-noise amplification to improve the signal-to-noise ratio before the data reaches the receiver.

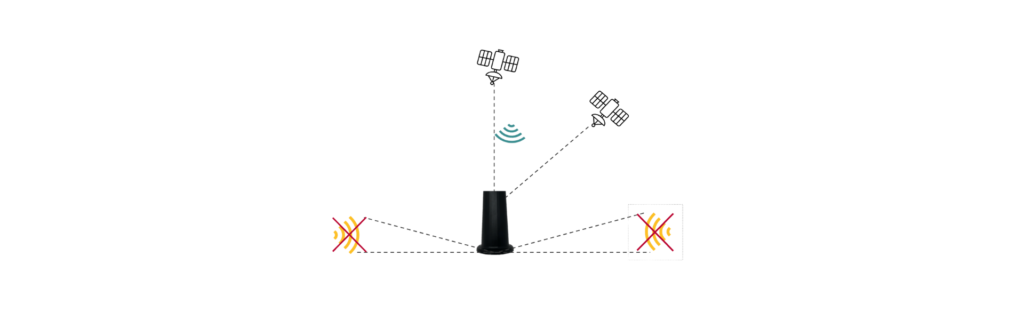

GNSS antennas must also reject unwanted signals such as multipath and radio frequency interference (RFI). Multipath occurs when GNSS signals reflect off surfaces like buildings, vehicles, or water before reaching the antenna. These reflections create signal delays and distortions that reduce positioning accuracy. Advanced antenna designs use ground planes, choke rings, or signal processing techniques to suppress multipath effects. Additionally, many antennas include narrow-band filters and low-noise amplifiers (LNAs) to protect against RFI from nearby transmitters, ensuring clean and reliable signal acquisition.
GNSS antennas and its applications
Different GNSS applications require different types of antennas. Surveying and mapping professionals often use high-precision geodetic antennas with choke rings or multi-band capabilities to achieve centimeter-level accuracy. These antennas are typically mounted on tripods or fixed stations and feature robust shielding to eliminate multipath. In contrast, automotive and UAV applications prioritize size, weight, and power efficiency. These platforms use compact patch or helix antennas that offer a good balance between performance and form factor. Marine and aviation environments require rugged antennas that withstand vibration, moisture, and temperature extremes, often mounted externally on vessels or aircraft.
In defense and aerospace applications, GNSS antennas must operate in challenging and contested environments. Military-grade antennas often include anti-jamming or anti-spoofing capabilities, such as controlled reception pattern antennas (CRPAs) that can steer nulls toward interference sources. These advanced antennas help ensure uninterrupted positioning and timing, even in hostile environments.
Installation and placement also impact antenna performance. For best results, the antenna should have a clear view of the sky, free from obstructions that could block or reflect signals. In mobile platforms, vibration isolation, secure mounting, and electromagnetic compatibility (EMC) must also be considered to prevent degradation of performance. Cable length and connector quality can also affect signal integrity, so proper selection and maintenance are essential.
As GNSS technology evolves, so do the capabilities of antennas. New signals like Galileo E5 and GPS L5 have expanded the frequency range supported by modern antennas. These antennas now provide better signal isolation. Rising demand for RTK, PPP, and GNSS+INS fusion increases the need for antenna precision. Users now expect higher consistency and accuracy from GNSS antennas.
