Anti-jamming refers to techniques and technologies used to protect signals—especially Global Navigation Satellite System (GNSS) signals—from intentional interference. These signals are inherently weak by the time they reach Earth, making them susceptible to disruption from relatively low-powered jamming devices. While some interference is unintentional, such as that caused by nearby electronic equipment or poorly shielded systems, the more concerning threat comes from intentional jamming by adversaries. This type of electronic warfare can severely impair positioning, navigation, and timing (PNT) services, which are foundational to both civilian infrastructure and defense operations.
Modern anti-jamming solutions employ several layers of defense. One of the most common techniques is the use of directional antennas or controlled reception pattern antennas (CRPAs). These antennas dynamically steer nulls—or areas of low sensitivity—toward the source of the jamming signal, effectively ignoring it while maintaining reception of the legitimate satellite signal. By focusing reception on satellites and suppressing interference, CRPAs allow GNSS receivers to function even in high-threat environments.
Anti-jamming signal processing
Another vital approach is signal processing. Advanced digital filters can distinguish between the characteristics of a GNSS signal and a jamming signal. By identifying and filtering out the noise, the receiver can isolate and preserve the satellite signal. Some systems use adaptive filtering algorithms that learn and evolve over time, improving their ability to block out interference. These algorithms operate in real-time and adapt their parameters based on changing radio frequency (RF) conditions, offering a dynamic and resilient solution to unpredictable jamming threats.

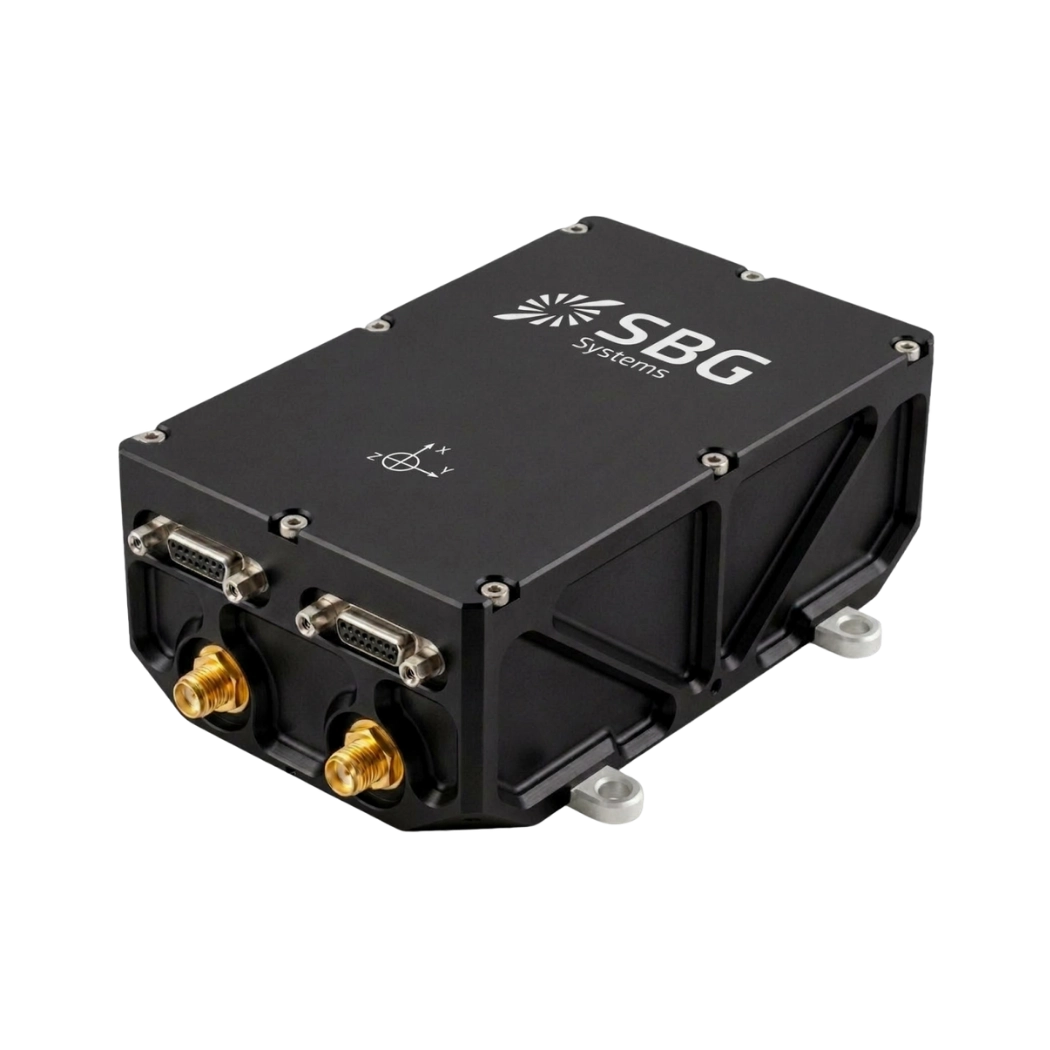

Additionally, integrating GNSS with complementary systems enhances robustness. Inertial Navigation Systems (INS), for example, provide continuous positioning data by measuring acceleration and rotation, independently of external signals. When a GNSS signal is lost due to jamming, an INS can bridge the gap, maintaining accurate navigation for minutes or even hours depending on the system’s grade. Other integrations, such as visual odometry, barometric altimeters, and terrain contour matching, further strengthen positioning resilience in denied environments.
Frequency diversity is another effective tactic. GNSS signals are broadcast on multiple frequencies (such as L1, L2, and L5 for GPS). A jammer targeting one frequency may not affect others. Dual or multi-frequency receivers switch to unaffected bands to maintain service. Some systems use signal authentication and encryption to prevent spoofing. Spoofing is a different threat where false satellite signals deceive receivers.
The effect of anti-jamming in different contexts
In military applications, anti-jamming is not optional—it’s essential. Troop movements, guided munitions, and drone operations all depend on uninterrupted and accurate PNT data. Defense systems often incorporate highly advanced anti-jamming solutions, including beamforming antennas, high-dynamic range receivers, and secure GNSS signals like GPS M-Code or Galileo PRS. These enhancements ensure military assets remain operational even in contested environments where electronic warfare is active.
Anti-jamming technologies also play a growing role in civilian sectors. Autonomous vehicles, commercial drones, aircraft, maritime operations, and even financial networks depend on GNSS timing. As jamming devices become cheaper and more accessible, even small-scale interference can cause outsized disruptions. Airports, ports, and major cities are increasingly investing in anti-jamming infrastructure, such as monitoring networks that detect and locate jamming sources for swift mitigation.
Despite advancements, anti-jamming remains a technological arms race. As jammers become more sophisticated—using sweeping frequencies, burst transmissions, or deceptive waveforms—defensive systems must continually evolve. Researchers continue developing machine learning-based detection systems. They also explore quantum-resistant authentication methods. Signal-of-opportunity navigation uses terrestrial sources like TV, radio, or cellular signals when satellites fail.
Ultimately, anti-jamming is not a single technology but a comprehensive strategy involving antenna design, signal processing, sensor fusion, and threat detection. It requires coordinated efforts across industries, governments, and international bodies. As GNSS and satellite services become more embedded in critical infrastructure, the demand for resilient and secure solutions will only grow. Anti-jamming technologies serve as a vital shield, protecting the invisible signals that keep the modern world moving.
